Transmitter & Five Pagers
- SKU: PGR-SYS-TTX-10XA1-CHRG
- Category: Industry Paging System, Paging Systems, Staff Paging Systems
Description
With this paging system a pager is notified by pressing the number of the pager on the transmitter. The pagers are notified by a light, vibration and / or sound signal. This paging system is used for in-house emergency services such as fire alarm, or to call a colleague, manager, visitor or any other person.

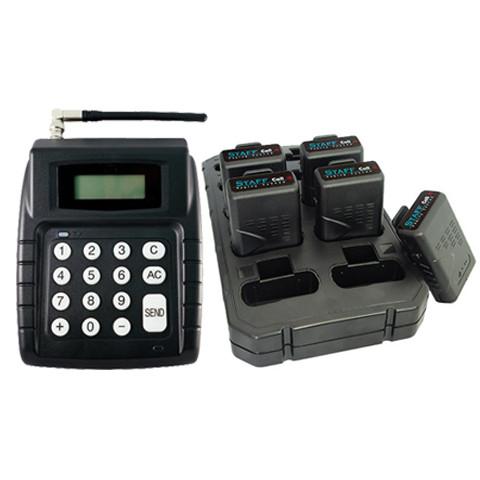

This paging system consists of:
- 1 x Transmitter
- 10 x Pager A1
- 1 x Charging station
* Click on the product to get to the product page and to order separate products.
How does it work in your company?
By providing an employee, guest, customer or visitor a pager - one can be reached everywhere. Each pager has a unique number that refers to the person. The system has a range of up to 600 meters, this can be extended with a repeater/range extender up to 2 kilometers. The person with the pager is available from any place within range and when the person is needed, the pager can be called from the transmitter. The pager gives a beep and vibration signal so the notified person knows what is needed to do.
Transmitter
This transmitter is suitable for calling up the numeric pagers. The transmitter has a simple interface with fifteen buttons and a display for four lines of text. With a USB connection, this transmitter can be connected to a computer. This allows manual messages to be sent from the computer.
Pager A-1
This pager is made for sturdy use. The A-1 pager receives calls by giving a light, vibration and / or a sound signal. The pagers are programmed to give the signal for six seconds.
Charging station
To charge the pagers, they are placed in the charging station. There is room for up to ten pagers. Multiple charging stations can be connected via a cable so that only one power outlet is required. The pagers are charged within 2 to 4 hours.
| Frequency List CE | 430 - 470 MHz license free |
| Protocol | Tone only / Numeric |
| Modulation Scheme | FM (FSK) |
| Output Power | 1 Watt |
| Baud Rate | 1200 Bps |
| Range | 600 meters - 2 kilometers. |
| Transmitter | L15,4 x W19 x H6,4 cm - weight 390 grams |
| Pager A1 | L4,9 x W7,45 x H3,2 cm - weight 76 grams |
| Charging Base | L26,5 x W15,7 x H1.8 cm |
Programming
By default, we program the pagers so that they give a light, vibration, and sound signal for six seconds. Do you only wish to receive a vibration and light signal, or a shorter / longer call? Then specify this with your order so we can program this for you.
Need more information about the Push Button Paging Systems? Please contact us via our contact page or click here.
