Description

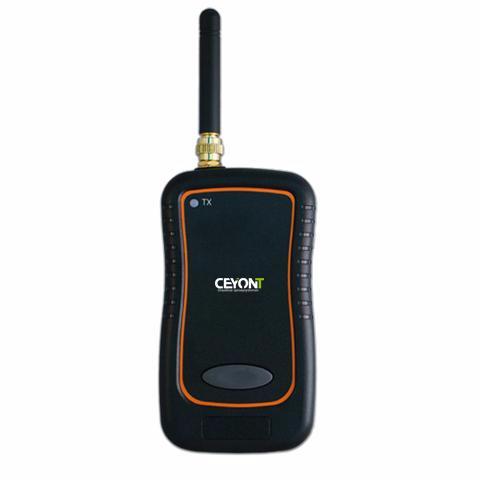

This call unit has one button to call a pager or text pager. The button receives one or more cap codes, which can trigger the pagers by pressing the one button. The texts can be determined by you, we can program it as desired. This call device is powered by 3 AAA batteries. Call one or more pagers wireless over long distances with pre programmed text messages with this push button transmitter. The dimensions of the call unit is described in the table below.
The call unit is a device that sends texts to pagers by pressing the button text messages. The call unit works with cap codes. This allows the button to call up one or more pagers. The system can be expanded or modified at any time. The call unit is powered by 3 AAA batteries.
Frequency List CE | 430 - 470 MHz license free |
Protocol | Alphanumeric / Tone Only / Numeric |
Modulation Scheme | FM (FSK) |
Output Power | 10mWatt |
Baud Rate | 1200 Bps |
Range | 500 meters - 2 kilometers. |
Push Button | L 5,8x B11,3 x H2,3 cm - weight 85 grams |
Programming
The text message for the call button on the unit is decided by the customer. The button can be programmed independently of each other so you can call one or more pagers at once. Each call unit gets a location which will be sent with the text call. So the recipient knows what is requested and where. As standard, we program the text pager that it gives a light, vibration and noise signal. You can adjust this via the menu of the text pager later.
Need more information about the Push Button Paging Systems? Please contact us via our contact page or click here.
